Solutions for Your Industry, Ready for Your Choice
Equipment name：A9015
1、Quantity：1 sets
2、category：Single platform laser cutting machine
| qty | Brand | Brand country/region |
Laser source | 1sets | Max | China Mainland |
Specialized laser cutting head | 1 sets | BOCI BLT421 | China Mainland |
Table bed | 1 sets | ELF | China Mainland |
Beam | Equipped | ELF | China Mainland |
XY Axis precision guide rail | 1 sets | T-WIN | Taiwan |
XY Axis Precision gear rack | 1sets | T-WIN | Taiwan |
X、Y axis Servo motor and driver | 3 sets | INOVANCE | China Mainland |
Z Axis Servo motor and driver | 1 sets | INOVANCE | China Mainland |
Reducer | equipped | KOFON | China Mainland |
Main electrical components | equipped | CHNT/OMROM | China Mainland |
Bed accessories | equipped | ELF | China Mainland |
Numerical Control System | 1sets | BOCHU 4000E | China Mainland |
Water cooler | 1 sets | HANLI | China Mainland |
Main pneumatic components | equipped | SMC | Japan |
Computer | 1 sets | Industrial specific controller | China Mainland |
One: parameters
item | Model | A9015 |
1 | working area | 9050*1530mm |
2 | Positioning accuracy | 0.03mm |
3 | Repositioning accuracy | 0.02mm |
4 | Max. running speed（X/Y axis linkage) | 115m/min |
5 | Max. acceleration（X/Y axis linkage) | 0.8G |
6 | Z-axis length of travel | 100mm |
7 | Table load bearing | 000kg |
8 | Overall dimension of main machine | 10600*2800*2100mm |
9 | Total weight of machine (domestic trade) | 0000kg |
Two: samples
Three: equipment working ability
material | Max Thickness（mm） | Quality welding thickness（mm） |
carbon steel |
|
|
Stainless steel |
|
|
Aluminium |
|
|
brass |
|
|
Four:Cost analysis
| Plan 1 | Plan 2 | Plan 3 |
Item | Air cutting (using an air compressor unit to cut stainless steel plates) | Oxygen cutting (cutting stainless steel with O2) | Nitrogen cutting (cutting stainless steel with N2) |
electric charge |
|
|
|
Cutting auxiliary gas cost |
|
|
|
Protective lens and cutting nozzle costs |
|
|
|
Total cost |
|
|
|
Five: Main Equipment Configuration Description

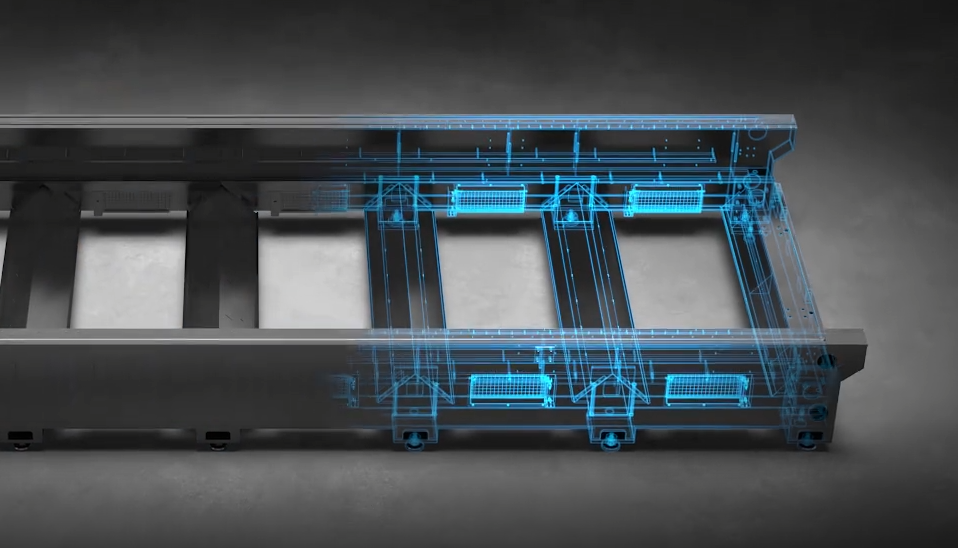

1.Brand new double dragon bone bed structure
In response to the demand for efficient processing, we have developed a self-designed double keel with a plug-in stop to ensure long-term stable cutting without deformation of the equipment.
- 2.Modular countertop design
The modular design of the workbench assembly ensures stable tabletop structure and strong load-bearing capacity, making it easy to disassemble, replace, and maintain.
- 3.New Anti Burning and Thermal Insulation Technology
Adopting new fire-resistant, fire-resistant, and heat-insulating technologies to improve the service life of equipment and ensure cutting accuracy.
- 4.Intelligent dust removal and clean production (optional)
Large caliber air duct design, independent control, partitioned dust removal, improves smoke exhaust and heat removal efficiency.
- 5.Follow up collision detection
Follow the collision detection, detect the lifting of the board in advance, automatically avoid obstacles, and reduce the maintenance cost of the laser head.
